Tool magazine carving machine XT8M

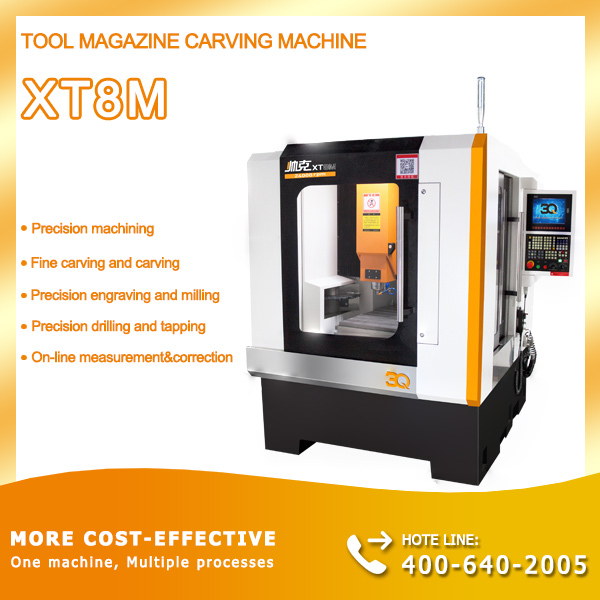

The XT8M engraving machine of 3Q tool magazine has the functions of high precision engraving, milling, grinding, drilling and cutting. Equipped with automatic tool changing function, this machine is widely used for precision machining in various fields. XT8M is a precision CNC machining equipment with distinctive features and powerful functions, which can be used for on-line measurement and intelligent correction. Precision carving machine can also be called precision carving machine, precision carving milling machine and so on.

Features of Tool Magazine Carving Machine XT8M

Mechanical structure: The cross beam, column and lathe bed are made of mineral casting technology, which has strong anti-seismic performance and structural stability far exceeding that of cast iron. The temperature remains stable all the year round.

Motion module: the bearing end adopts high precision linear module to improve the assembly precision, and cooperates with imported grinding screw rod and guide rail to keep high precision and smoothness when the machine tool runs at high speed.

Numerical control system: it adopts the control system of Snag bus to avoid the position error caused by returning to the original point, and at the same time, it improves the response speed and resolution of the equipment, so as to make the arc position and small line section more uniform during high-speed processing.

High speed motorized spindle: Medium 100mm motorized spindle is adopted to ensure torque and rigidity, reduce the weight of Z-axis and avoid impact and vibration caused by excessive inertia.

Tool magazine: servo D-type tool magazine developed independently is adopted for better sealing performance The safety design of anti-collision knife is added in many places, which makes the knife change safer and more reliable. Degrees faster.

Tool magazine carving machine XT8M standard configuration

CNC operating system	Rigid tapping
Handwheel controller	36000rpm
Contact tool setting instrument	Axis of rotation
Constant temperature oil cooler	Oil Mist Collector
Heat exchange of electric cabinet	Laser tool setting instrument
Servo tool magazine	On-line Measurement System
Screw chip removal machine
Quantitative pressurizing type automatic lubricating
SMC positive pressure seal
Led work light
Coolant circulation system
Air gun for flush and grabbing
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Performance Parameters of Tool Magazine Carving Machine XT8M

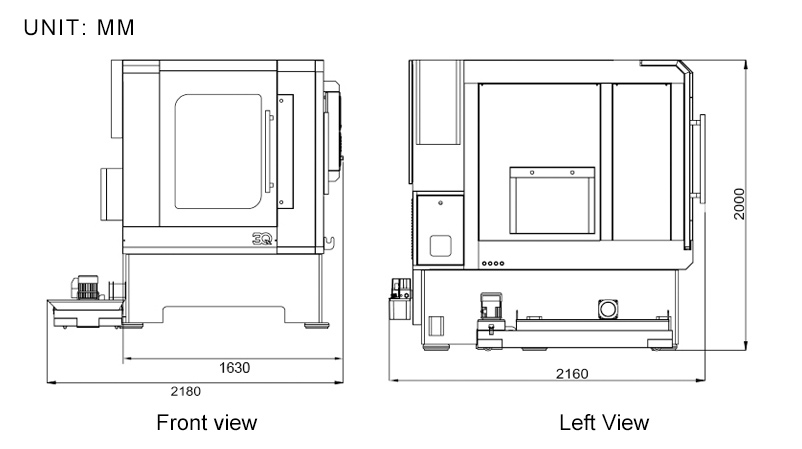

Overall dimension of cutter magazine fine carving machine XT8M
