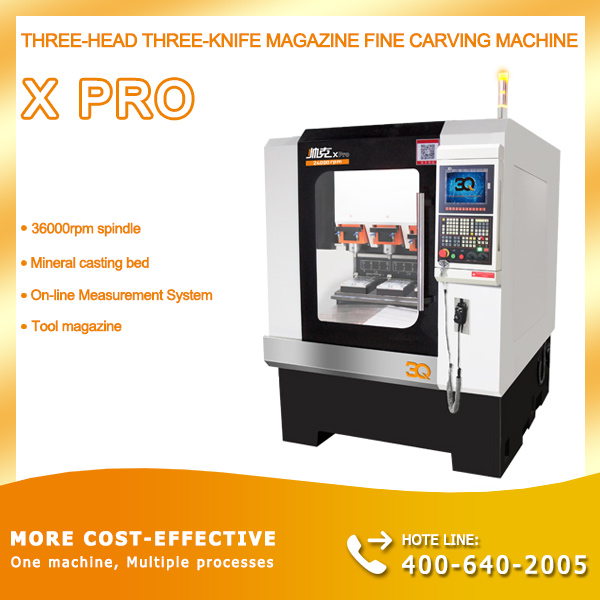

Three-head three-knife magazine fine carving machine X Pro

3Q Three-head and Three-knife Carving Machine X Pro has the functions of high-precision carving, milling, grinding, drilling and cutting. This model is equipped with three spindles and three tool magazines, which can process 3C products, hardware accessories and jigs in batches. 3Q Three-head and Three-tool Magazine Carving Machine X Pro is a precise CNC machining equipment with distinctive features and powerful functions, which can carry out on-machine measurement and intelligent correction. Precision carving machine can also be called precision carving machine, precision carving milling machine and so on.

Features of X Pro Carving Machine with Three Heads and Three Knife Magazine

Mechanical structure: The crossbeam column lathe bed uses the advanced mineral casting technology, the anti-seismic performance is strong, the structural stability far surpasses in the cast iron, causes And that precision is stable all the year round.

Motion module: the bearing end adopts high precision linear module to improve the assembly precision, and cooperates with imported grinding screw rod and guide rail to keep high precision and smoothness when the machine tool runs at high speed.

Numerical control system: it adopts the control system of Snag bus to avoid the position error caused by returning to the original point, and at the same time, it improves the response speed and resolution of the equipment, so as to make the arc position and small line section more uniform during high-speed processing.

High speed motorized spindle: φ100mm motorized spindle is adopted to ensure torque and rigidity, reduce the weight of Z-axis and avoid impact and vibration caused by excessive inertia.
Tool magazine: Adopt self-developed straight-row tool magazine, with better sealing performance, anti-collision tool safety design is added in many places, tool changing is safer and more reliable, with faster speed.

Three-head three-knife magazine fine carving machine X Pro standard configuration

CNC operating system	Rigid tapping
Handwheel controller	36000 rpm spindle
Contact tool setting instrument	Axis of rotation
Constant temperature oil cooler	Oil Mist Collector
Heat exchange of electric cabinet	Laser tool setting instrument
Tool magazine	On-line Measurement System
Screw chip removal machine
Quantitative automatic lubrication
SMC positive pressure seal
Led work light
Coolant circulation system
Air gun for flush gun
Note: The symbol "" represents the standard symbol "" Representative Selection

Performance Parameters of X Pro Carving Machine with Three Heads and Three Tool Magazine

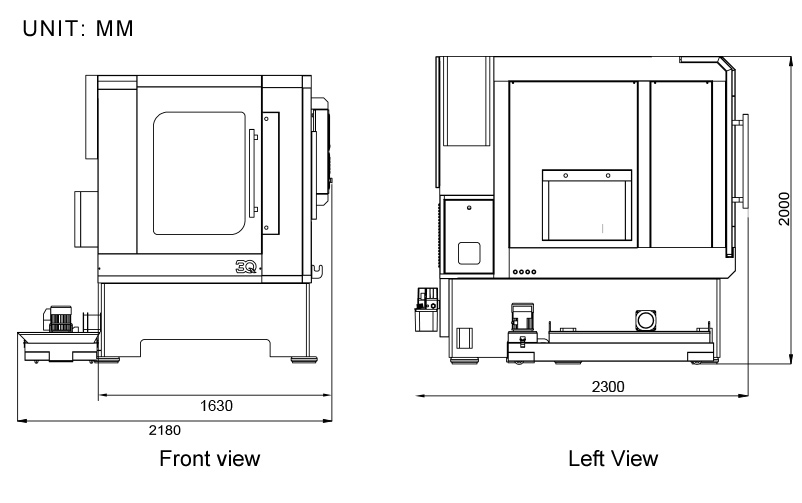

Engraving machine X Pro with three heads and three tool magazines Boundary dimension
