Machining center V series

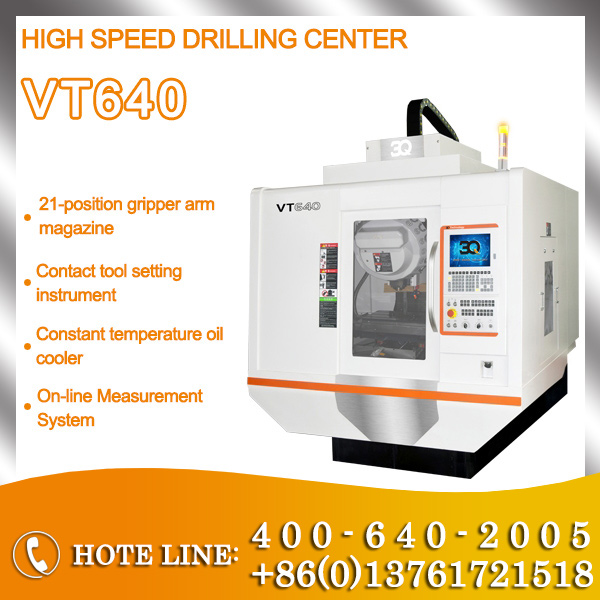

High speed drilling center VT640

Phone: +86(0)13761721518
Tel: 400-640-2005
Email: timpei@aliyun.com
3Q high speed drilling and tapping center VT640 with automatic tool changing vigorous milling high speed finishing high speed rigid tapping and other processing features. It is suitable for 5G 3C industries automotive parts and other
Inquiry

3Q high speed drilling and tapping center VT640, with automatic tool changing, vigorous milling, high speed finishing, high speed rigid tapping and other processing features. It is suitable for 5G, 3C industries, automotive parts and other processing. It is a high-end CNC drilling and tapping center with advanced technology and simple operation.

High Speed Drilling Center VT640 Standard Configuration

CNC operating system	Contact tool setting instrument
Handwheel controller	DD motor four-shaft
Constant temperature oil cooler	Roller cam four-shaft
21-position gripper arm magazine	DD motor five-axis
Positive pressure seal	On-line Measurement System
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Features of VT640 Equipment for High Speed Drilling and Tapping Center

1. Three-axis imported high-precision screw and ball line rail, can achieve rapid processing, and ensure the processing accuracy.

2. Super-large span base, using six-point support, solid structure, high-speed displacement without vibration, no deformation.

3. Equipped with direct-connected high-rigidity imported high-speed spindle, can be vigorously milling, high-speed finishing, high-speed rigid tapping.

4. Equipped with 21 tool position imported clamping arm type servo tool magazine, fast and stable tool change.

Technical parameters of VT640 high speed drilling and tapping center

Model	VT640	VT740
X/Y/Z axis motion positioning accuracy	±0.005/300mm	±0.005/300mm
Repeated positioning accuracy of X/Y/Z axis	±0.003mm	±0.003mm
Working stroke of X/Y/Z axis	600/400/330mm	700/400/330mm
Workbench dimension	700x400mm	800x400mm
Spindle power	≤5.5Kw	≤5.5Kw
Distance from spindle nose to worktop	110-440mm	110-440mm
Working Load	≤300Kg	≤300Kg
Electric spindle speed	≤20000rpm	≤20000rpm
Shank Specification	BT30	BT30
Tool magazine capacity	21 pack	21 pack
X/Y/Z axis rapid movement speed	48m/min	48m/min
X/Y/Z axis cutting feed speed	≤10m/min	≤10m/min
Driving System	Absolute value servo system	Absolute value servo system
Control system	Nanobus control	Nanobus control
Working Voltage	Three-phase 380V/50Hz	Three-phase 380V/50Hz
Air supply pressure	≥0.4MPa	≥0.4MPa
Total weight of machine tool	3000Kg	3500Kg
Each equipment is tested and debugged by ball bar instrument before leaving the factory.
