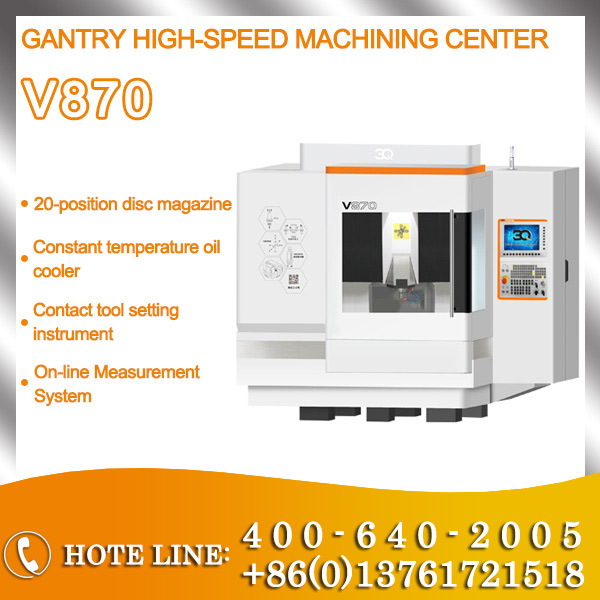

Gantry high-speed machining center V870

3Q gantry high speed machining center V870, with high speed, high rigidity, high feed processing characteristics, can be widely used in high rigidity drilling, milling and high speed precision machining and other fields. It integrates the functions of rough opening and precision processing with a single machine, which greatly reduces the procurement cost of enterprises and simplifies the processing process. It is a high-end CNC processing equipment with advanced technology and simple operation. Q gantry high speed machining center V870 is also called high speed CNC, CNC high speed machine.

Gantry high-speed machining center V870 standard configuration

CNC operating system	DD motor four-shaft
Handwheel controller	Roller cam four-shaft
Contact tool setting instrument	On-line Measurement System
Constant temperature oil cooler	Elevated Column
20-position disc magazine	DD motor five-axis
SMC positive pressure seal
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Characteristics of Gantry High-speed Machining Center V870

1. Equipped with high-precision, high-speed screw, can be used for drilling, high-gloss milling and hardware processing, especially for high-gloss in the 3C industry. For the stainless steel, aluminum processing.

2. The beam is supported by three linear guide rails, which improves the rigidity of Z axis and the stability of X axis movement.

3. Equipped with φ120 (30000 rpm) closed-loop electric spindle, it can be used for vigorous milling, high-speed finish machining and high-speed rigid tapping

4. Equipped with 20 tool position disc type double servo tool magazine, using manipulator tool change, tool-to-tool tool change time is 1.2 seconds, the manipulator uses a unique buffer technology to avoid the impact on the electric spindle.

Technical parameters of gantry high-speed machining center V870

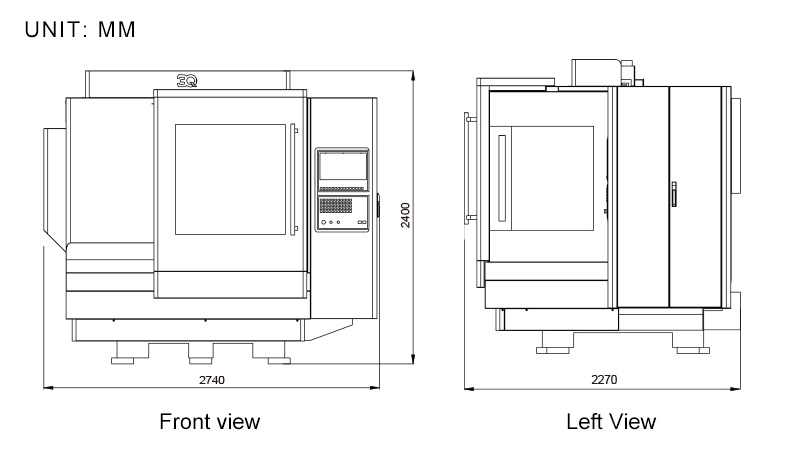

Gantry High Speed Machining Center V870 Boundary Dimension
