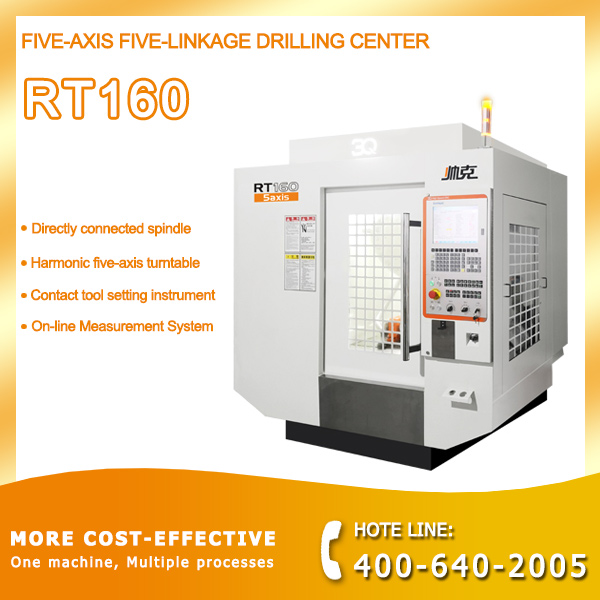

Five-axis five-linkage drilling center RT160

Phone: +86(0)13761721518
Tel: 400-640-2005
Email: timpei@aliyun.com
3Q five axis five linkage drilling center RT160 a sharp tool for machining small parts with five axes. It can perform five axis linkage machining and has functions such as high-precision carving milling grinding cutting drilling etc.
Inquiry

3Q five axis five linkage drilling center RT160, a sharp tool for machining small parts with five axes. It can perform five axis linkage machining and has functions such as high-precision carving, milling, grinding, cutting, drilling, etc. It is suitable for five axis machining of die castings, titanium alloy precision parts, precision molds, optical molds, and complex hardware components. A machine has multiple functions and is equipped with functions such as automatic tool changing, in machine measurement, intelligent correction, etc. It is a powerful and cost-effective precision CNC machining equipment. Reduced procurement costs for enterprises and simplified the process of CNC machining. Five axis precision engraving machine can also be called five axis precision engraving machine, five axis precision engraving and milling machine, etc.

Five-axis five-linkage drilling center RT160 Configuration

Harmonic five-axis turntable	RTCP tip following
Directly connected spindle	On-line Measurement System
CNC operating system	Rigid tapping
Handwheel controller	Contact tool setting instrument
Heat exchange of electric cabinet	Laser tool setting instrument
Servo tool magazine	Oil Mist Collector
Quantitative automatic lubrication
Coolant circulation system
Note: Symbol "" stands for standard configuration Symbol "" stands for optional configuration

Typical application of five-axis five-linkage drilling center RT160

Medical Device Parts

Automobile mould insert

Impeller/scroll

Musical Instrument Accessories

Gear die and parts

Brittle and hard material

Ornaments/Handicrafts

Die Casting Parts

Jig type structural member

Composite processing structural part

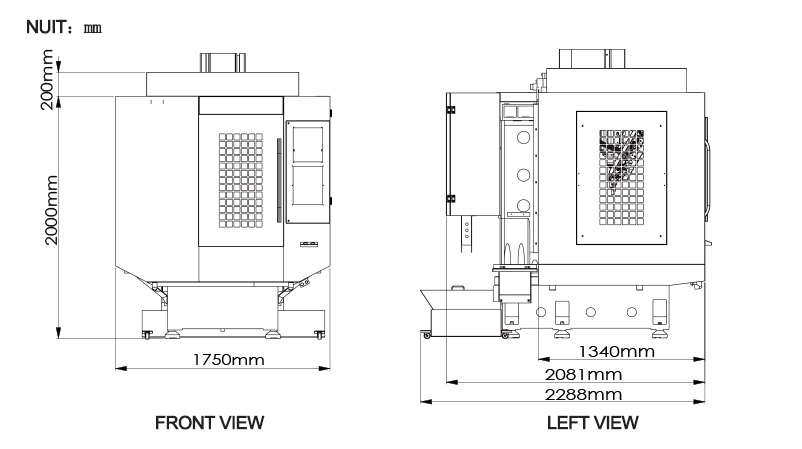

Performance parameters of Five-axis five-linkage drilling center RT160

Project	Standard Value
Model	RT160
X/Y/Z axis motion positioning accuracy	±0.005/300mm
B/C axis motion positioning accuracy	20″/ 20″
Repeated positioning accuracy of X/Y/Z axis	±0.003mm
Repeated positioning accuracy of B/C axis	3″/ 3″
Working stroke of X/Y/Z axis	600 / 400 / 300mm
Rotation angle of B/C axis	±110°/ 360°
Diameter of table	Φ160mm
Machining diameter	Related to B-axis rotation angle
Distance from spindle nose to rotating disc surface	95-395mm
Maximum Working Load	14kg
Maximum Spindle speed	20000rpm
Shank Specification	BT30
Tool magazine capacity	21 pack
X/Y/Z axis rapid movement speed	48m/min
B/C axis rapid movement speed	30rpm
Maximum X/Y/Z axis cutting speed	10m/min
Maximum B/C axis cutting speed	20rpm
Driving System	Absolute value servo system
Control system	Nanobus system
Working Voltage	380V / 50Hz
Air supply pressure	≥0.5MPa
Total weight of machine tool	3500Kg
Each equipment is tested and debugged by ball bar instrument before leaving the factory.
